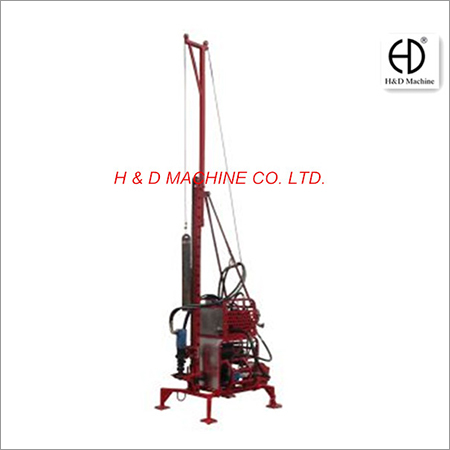

HD 30 Man Portable Drilling Rig

Drilling Method

Depth

Pipe (diameter x length)

Hole diameter

Mud drilling

30m

ø50x3x1500

75/90mm

Air drilling/Hammer drilling

30m

ø50x3x1500

75/82mm

Screw drilling

15m

ø50xø90x1500

90mm

Power Swivel

Rating torque

660 N.m

Rated speed

0~170 r/min

Hoisting/Push-down system

Max. hoisting weight

1000 kg

Max. push-down force

4 KN

Max. hoisting speed

0.77 m/s

Hydraulic system

Working presusre

190 bar

Engine power

23 hp/3600 r/min

Weight

Max. sets

<75 kg

Overall unit

<272.5 kg

Overall dimension

About 1250x1000x2800/when running

Piston mud pump

Gasoline or diesel power option

Pressure

14 bar

Displacement

120 L/min

Weight

<115 kg

Air screw compressor

1 set

Total displacement

3.0~3.8 M3/min

Pressure

0.8 MPa

Power

Kohler 38 hp

Weight

<180 kg(one sets)
