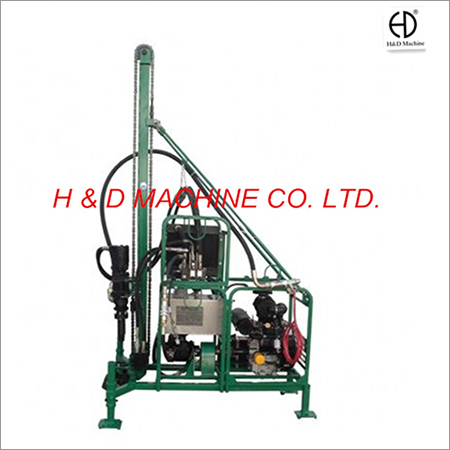

HD-40C Man Portable Drilling Rig
Product Details:
- Supply Ability : 10000sets Per Year
- Click to view more
Price And Quantity
- 1 Set
- USD ($)
Trade Information
- XINGANG
- Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)
- 10000sets Per Year
- 60-90 Days
- Yes
- Contact us for information regarding our sample policy
- PLYWOOD CASE
- Australia, North America, South America, Eastern Europe, Middle East, Western Europe, Africa, Central America, Asia
- All India
- ISO9001
Product Description
In line with clients' diverse requirements across the country, we are offering an enormous range of HD-40C Man Portable Drilling Rig. This is reliable, convenient to use and can be quickly disassembled. Our offered can be used in plain, mountains, hills, forests, seasonal farmland, mines, geologic framework investigation, and other drilling projects. Moreover, this HD-40C Man Portable Drilling Rig can be availed by our esteemed clients from us at market leading prices.
Key Features:
- This modular design man portable drilling rig is reliable, convenient to use and can be quickly disassembled. Like other drilling rigs, it houses engine, power swivel, aerodynamic system, mast assy, console platform, drilling tool, and other standard components. It can be used in plain, mountains, hills, forests, seasonal farmland, mines, geologic framework investigation, and other drilling projects.
- Just like other drilling rig, it can adopt different drilling methods, from air drilling, mud drilling, auger drilling, casing drilling and DTH hammer drilling. It has maximum drilling depth of 40 meters.
- The design of the belt driven hydraulic pump can be optimized. It can have hydraulic pump, hydraulic oil tank, cooler and reversing valve. This combination helps in improving the balance weight at the well head. The rectangular pipe and the slide plate welded together makes Mast assy.
- We have incorporated hydraulic motor, hydraulic valve and hydraulic pump of well known brands.
- The machine is equipped with hydraulic balance valve and reducing valve, which allows effective drilling tools hoisting and steady push down with load. The safety and reliability of the system is significantly improved.
- For improving the drilling efficiency and achieve perpendicularity of the hole, a self-adaption system to stratum is employed. This also minimizes driller's handle control time. A roller chain driven by hydraulic motor hoists and push down the drilling tools.
- High capacity in-built lithium battery reduces the weight at maximum limit. Power swivel of the machine divides bearing chamber and circulation drilling fluid to minimize the chances of damage to bearing.
- This machine has DTH hammer with inter convertible high/low frequency.
- This machine has a safety & warning mark for the security of operator.
Technical Specification :
| Drilling method | Depth | Drilling bit | ||
| Mud drilling | 40 m | Æ60×1500 | 75-90mm | |
| Air drilling | 40 m | Æ60×1500 | 75-82mm | |
| Auger drilling | 20 m | Æ50×Æ90×1500 | 90mm | |
| Casing drilling | 20 m | ä108×ä60×1500mm | 110mm | |
| Power swivel | Rated torque | 1050 N.m | ||
| Rated rev. | 0 to 150 r/min | |||
| Hoisting/Push-down system | Max. hoisting weight | 2000 kg | ||
| Max. Push-down Force | 7 kN | |||
| Max. hoisting speed | 0.73 m/s | |||
| Hydraulic system | Working pressure | 215 bar | ||
| Engine power (Gasoline) | ||||
| Net Weight | Max weight of part | Less than 75 kg | ||
| Total weight | Less than 325 kg | |||
| Overall dimension | When working 1500X960X2750 | |||
