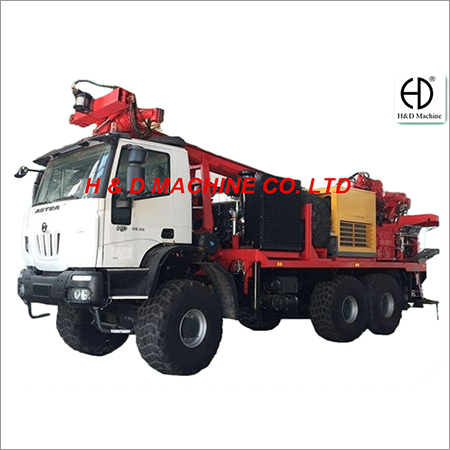

Truck Mounted Multifunctional Drilling Rig

Next > >

<< Previous

Send Inquiry

Product Code : HD-T300

Brand Name : H & D MACHINE

Product Description

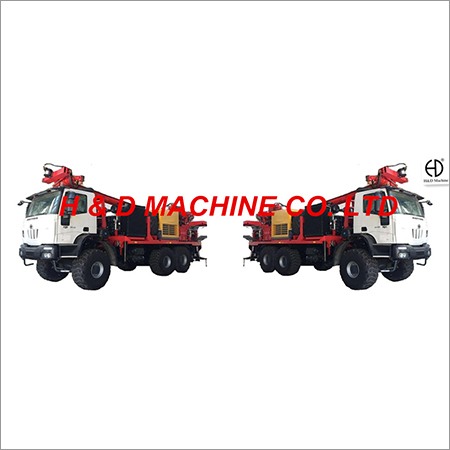

This truck-mounted rig is integrated, multifunctional and proven in the field. There is direct circulation method to complete well drilling. The rig is crucial for water well drilling, constructions, geological coring, and so on. It is mounted on 6X6/6X4 off-road vehicle chassis. The powerful & fast-moving rig has comprehensive drilling ability. Also, there is a good combination of hydraulic and mechanical operation. The drill rig is perfect for any job-site, holes, or conditions. It's a good option for deep hole projects, environmental and geo-technical projects. Our well-engineered rigs are suited for all needs and budget.

Features/Benefits:

Simple construction, easy & efficient operation
Flexible, versatile and rugged in nature
Superior performance and reliability
Heavy-Duty, faster & more efficient
The rig has big power and good stability

Specifications:

Max. drilling depth	Hole diameter (4 1/2＂) 114 mm		300 m
	Hole diameter (6 1/2＂) 165 mm		200 m
	Hole diameter (８＂) 200 mm		100 m
Drill tools	Drill pipe (diameter×length) mm		Ф76×6000
	Drill pipe (diameter×length) mm		Ф114×6000
Power swivel	Output torque N.m		6000 / 8000
	Rotary speed r/min		145 /110
Feed system	Feed/hoisting force kN		120
	Hoisting speed m/s		0～0.71
Rod clamp	Clamping force kN		122
	Unsrewing torque N.m		12400
Hydraulic system	Rotary speed of hydraulic pump r/min		1600
	Working pressure	Rotation rate MPa	25
		Feed MPa	25
		Mud pump system MPa	25
		Auxiliary system MPa	20
